PEUT-913

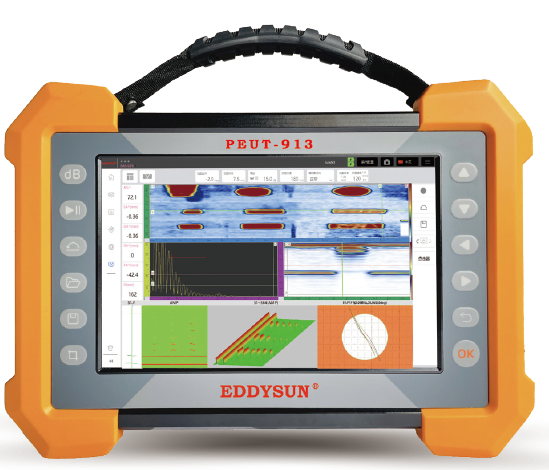

EDDY CURRENT ARRAY / Phased Array Ultrasonic Integrated Testing Instrument

PEUT-913 Eddy Current Array/Phased Array Ultrasonic Integrated Tester breaks the limitations of traditional NDT by combining PAUT and ECA technologies in one revolutionary device. It delivers all-in-one detection of internal, surface, and near-surface flaws without coating removal, providing real-time 2D/3D C-scan imaging and automatic defect sizing. The system adapts to complex components like welds and turbine disks using electronic scanning and custom wedges. Its software correlates data from both techniques to reduce false calls, while full digital traceability meets aerospace and nuclear quality standards.

Technical Features

Directly tests through paint – saves over 90% of prep time and cost.

World's first PAUT & ECA all-in-one system – a true inspection breakthrough.

Complies with aerospace/nuclear QA with complete raw data and parameter logging.

Electronic scanning and custom wedges adapt to welds, crankshafts, and more.

Auto-links multi-technique data to cut false calls and missed defects.

Single-pass inspection for internal, surface, and near-surface defects.

Automatically measures flaw depth, length, and position to strict standards.

Real-time 2D/3D color imaging shows flaw type and location instantly.

Functional Information

• Up to 64-128 channels TFM for enhanced detection potential
• Complete TFM toolbox and 128-chip TFM imaging
• PA/UT transmit and receive configuration of 64-128 PR
• Maximum data acquisition speed of 2 GB/s
• Bandwidth (PA) ranging from 0.4MHz – 26MHz
• Digital frequency of 100 MHz / 200 MHz
• Communication interfaces including WIFI, USB, GbE, Bluetooth
• Full Matrix Capture (FMC)
• Total Focusing Method (TFM)

• 32-Channel Array Eddy Current Testing
• Non-Directional Weld Inspection
• Lift-Off Jitter Compensation
• Built-in Crack Depth Measurement
• High Definition & Sensitivity
• Multiple Filter Modes
• Flexible Data Storage
• Multi-Frequency Configuration & Analysis
• Full-Waveform Storage & Replay

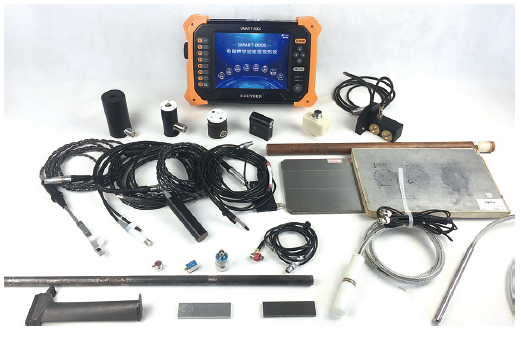

SMART-8005

Electromagnetic-Acoustic Integrated Testing Instrument

The SMART-8005 Electromagnetic-Acoustic Integrated Testing Instrument combines array multi-frequency eddy current, remote field eddy current, magnetic memory, magnetic flux leakage, high-sensitivity ultrasonic, acoustic sweep frequency, and acoustic impedance testing capabilities.

Array Eddy Current & Remote Field Testing

• Lift-off vibration compensation
• Unique crack depth quantification
• Non-uniform amplitude/phase alarm
• Multi-mode display: impedance plane, time-base scan, overlay view
• High resolution & sensitivity with customizable presets
• Simplified operation: bilingual UI
• Rapid defect localization via C-scan
• Multi-functional measurements

Magnetic Flux Leakage (MFL) Testing

• 32-64 Channel Real-time Detection Technology
• Enables real-time inspection of defects in ferromagnetic metal pipes
• No surface pretreatment required
• High sensitivity and fast detection
• Configurable sensor types
• Applicable to pipelines, bars, cables and structures

Additional Functions

• Stores inspection parameters/data with exportable reports
• Integrated GPS positioning
• Full signal waveform recording and playback
• Combined video detection module
• Interactive touchscreen interface
• 7+ hours continuous operation

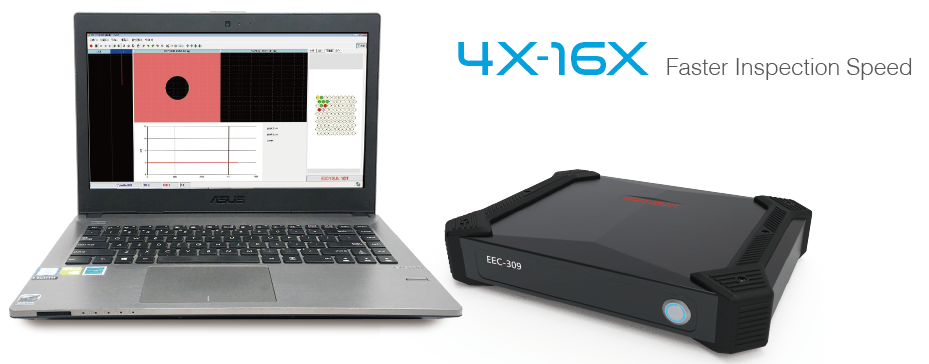

EEC-309

High-Speed Remote Field Eddy Current Tester

EEC-309 High-Speed Remote Field Eddy Current Tester employs real-time MIMO, OFDM multi-frequency multiplexing, and multi-channel eddy current technologies to perform remote field testing at conventional eddy current inspection speeds, significantly improving detection efficiency.

Product Introduction

Designed for real-time defect inspection and wall thickness measurement of ferromagnetic pipelines (inner/outer walls) in power and petrochemical sectors.

Technical Specifications
