TANK-4000
Tank Floor Leakage Flux / Eddy Current Video Inspection System
Tank-4000ME tank bottom inspection system is designed to check and measure corrosion and thickness decrease of tank bottom plate. The system improves the complete inspection process with industrial touch integrated computer, reliable and stable performance, high sensitivity and high efficiency. The structure is optimized with embedded system module, six-wheeled design and new arm structure.
- Real-time Signal Acquisition & Analysis
- Applicable to Carbon Steel & Stainless Steel
- Automated Inspection Report Generation
- Top/Bottom Surface Defect Identification

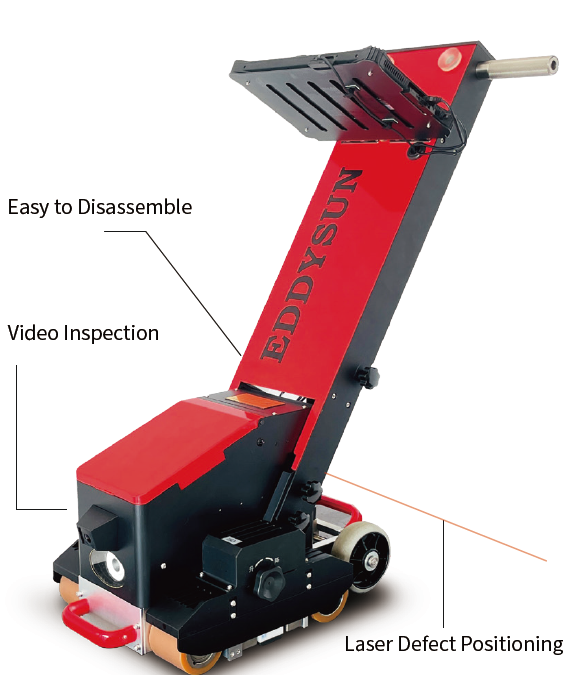

- Laser Defect Positioning
- High-Definition Video Capture
- A-Scan / C-Scan Imaging
- Tank Floor Mapping
Functional Specifications
| Items / Performance Indicators | |
|---|---|
| Channel | 64 channels with 32-chan. mfl and 32-chan. ect for top and bottom discrimination |
| Top and bottom discrimination | Enable to determine defect is top side or bottom side, and the defect location |
| Scan width | 300mm |
| Scan speed | Variable between 500mm/s-700mm/s |
| Max sensitivity | 40% material loss for 16mm thick plate |
| Drive method | Manual drive, or integrated electric drive |
| Thickness range | 4 up to 16mm |
| Positional accuracy | ±5mm |
| Display screen | IP65 grade industrial tablet, capacitive touch screen with resolution 1920*1200 |
| Analysis software | Real-time acquisition and report analysis |
| Imaging method | A scan, C scan, floor mapping |
| Data storage | Data saved in PC hard drive or external storage device |
| Alarm output | Alarm for defect signal out of accepted range, and for low battery |
| Power requirements | DC 12V, 12V 38AH sealed lead acid batteries |
| Typical battery operational time | Up to 8 hours |
| Weight | 71kg including battery of 12.5kg |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -20°C to +50°C |
| Relative humidity | ≤85% |
