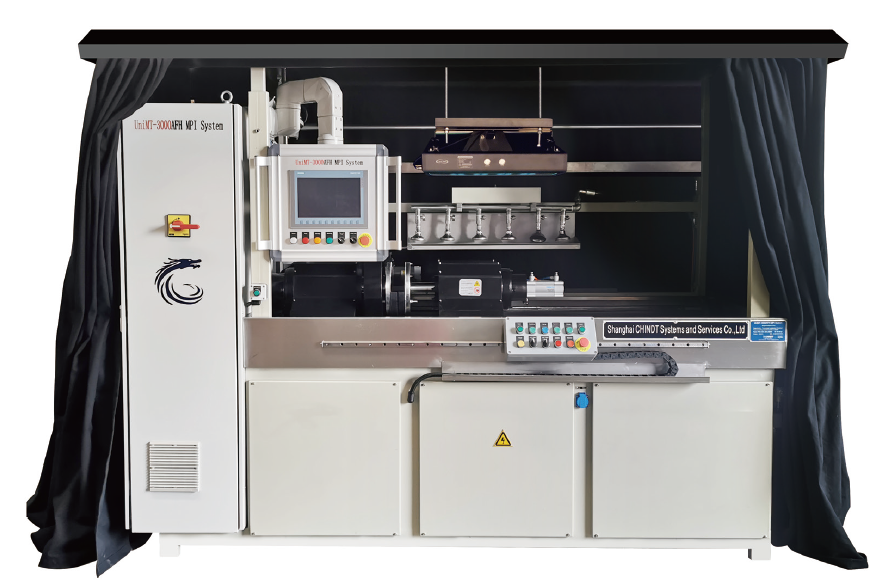

Data Sheet for CHiNDT Standard MPI Systems

• Clamp Distance: 500mm–6m (1.5–20'), customizable
• Current: 1,000–15,000A, AC/FWDC/HWDC, single phase / 3 phase
• DeMAG: AC or DC DeMag
• Recipe: 1–100 recipes per request
• Part Rotation: per request
• Openable Roof: per request
• Right Stock: electric moving
• Coil Dimension and Quantity: per request
• Clamping of Parts: pneumatic driven
• Spray: auto and manual
• Suspension Tank: 40–100L, per request
• Magnetization: single vector, multiple vector

Custom MPI Systems

For Aerospace Industry

• 5–8mm three-phase full-wave DC output, achieving inspection depth up to 5–8mm
• Ultra-low frequency DC reversing attenuation demagnetization, meeting US Military Standards
• Supports multiple magnetization methods, including Cable Wrapping Method and Direct Current
• Flow Method and Prod Method
• Intelligent Control: PLC and Touch Screen control for user-friendly operation
