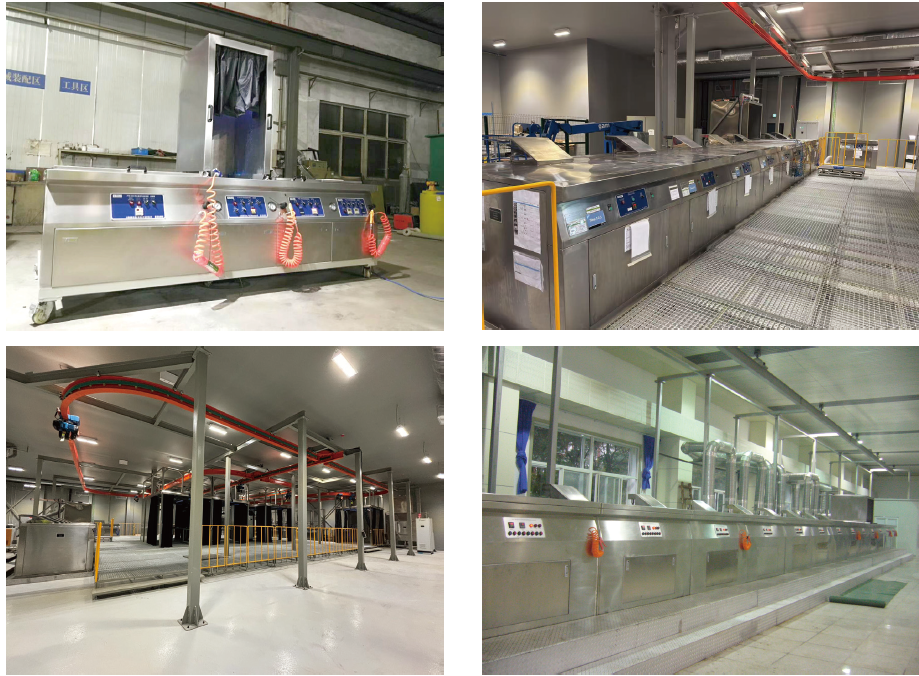

A set of tanks with different functions, equipped with manual hoists or cranes for transferring parts or baskets between stations. Mostly used in the aerospace industry with multiple types of parts.
| Typical Application | Aerospace, Defense, Automotive, Medical, etc. |
| Cycle Time | 2–15 Minutes per Batch |
| Typical Process |
Customized per request, generally include: Pre-cleaning (Ultrasonic, Alkaline) - DI Water Rinsing - pre-drying Penetrant dip/spray - Dwell - Rinsing - Emulsification - Manual Touch-up Drying - Developing - Post Cleaning - Inspection Booth. |
| Dimension |
Tank dimension from 0.3m (1') to 8m (27'). Customized per request |

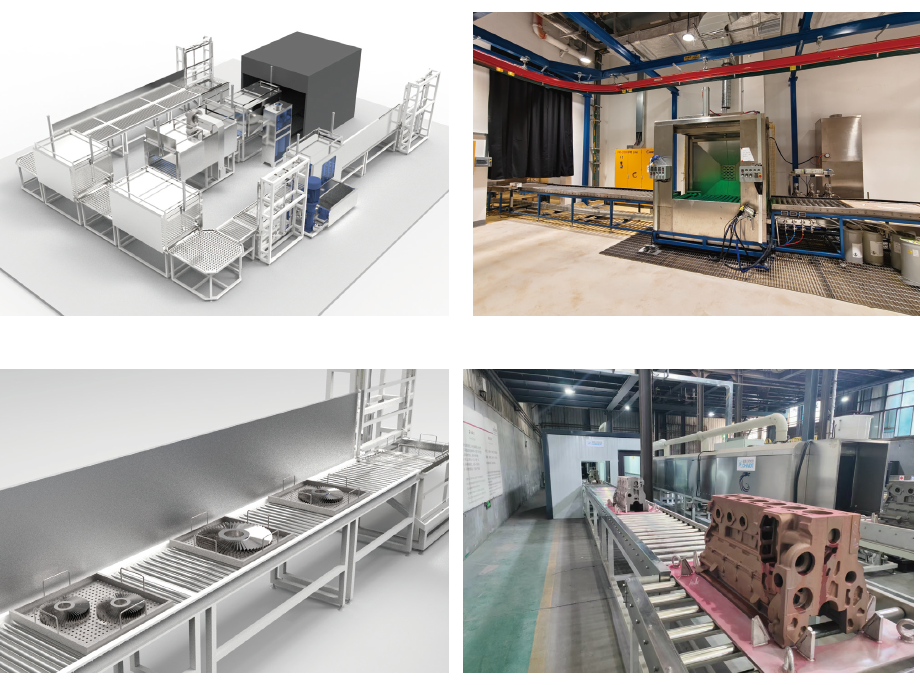

The roller-type FPI line consists of multiple tanks integrated with manual or automatic roller systems. These rollers facilitate the transfer of parts or baskets, ensuring simple and efficient operation.

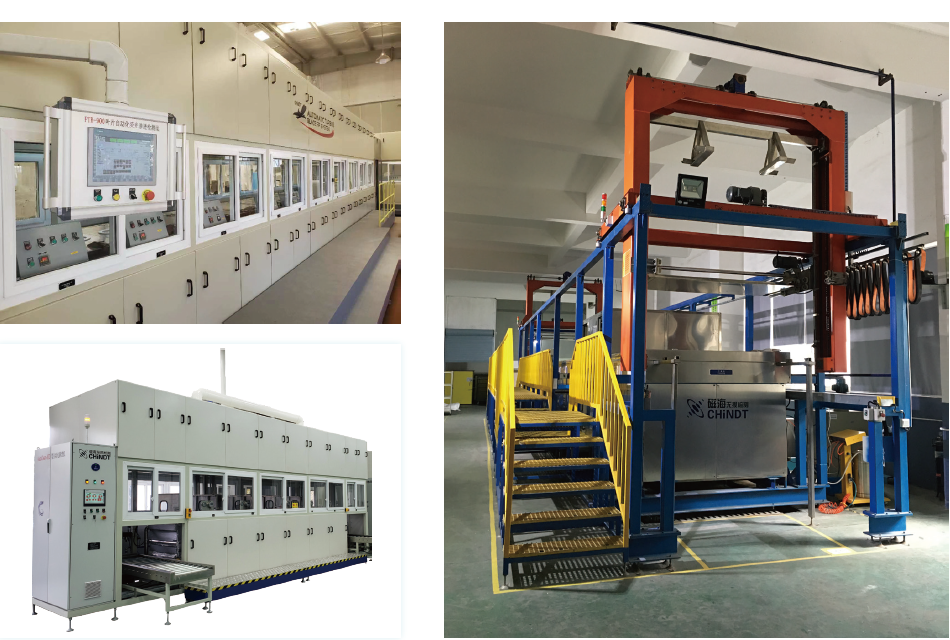

The tank-type automatic testing line includes HMI, functional tanks, automated cranes, inspection darkroom, and wastewater treatment system.

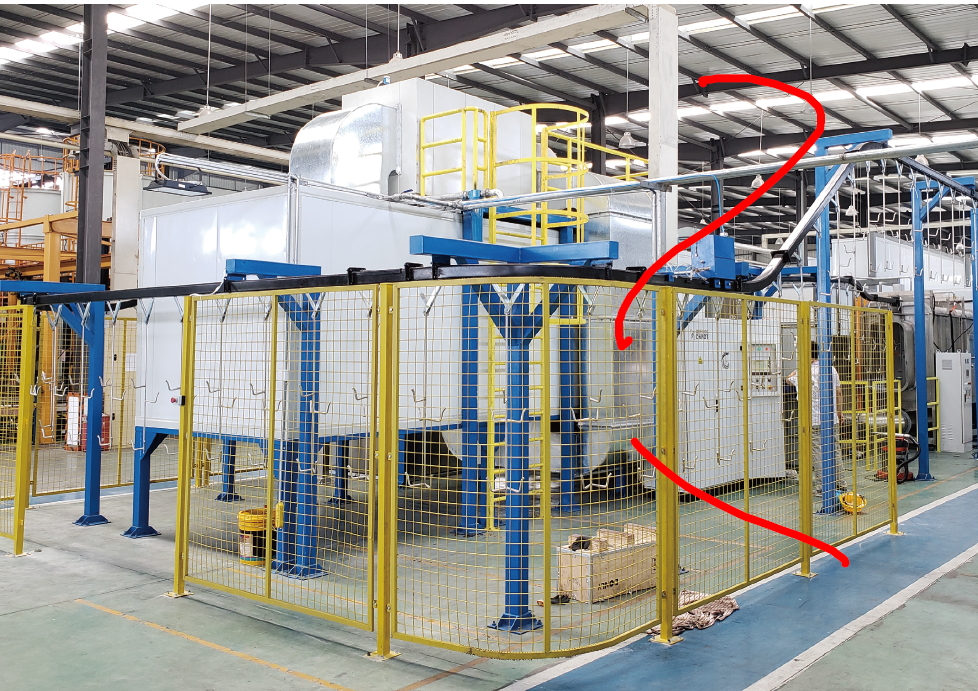

Parts are hung on monorail chains and move station by station automatically.

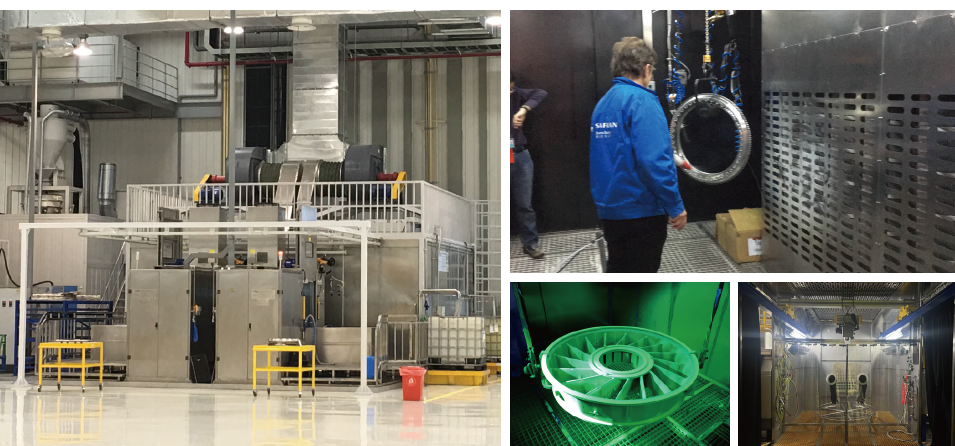

A set of booths with carts or manual hoists for part transfer.
| Typical Application | Large and complex parts, e.g. engine subframe, landing gear, etc |
| Cycle Time | 5–20 Minutes per Batch |
| Typical Process |
Pre-cleaning - Electrostatic Penetrant Spray - Pre-rinsing - Emulsification - Emulsifier Stop - Drying - Electrostatic Developer Spray - Inspection - Post-cleaning |

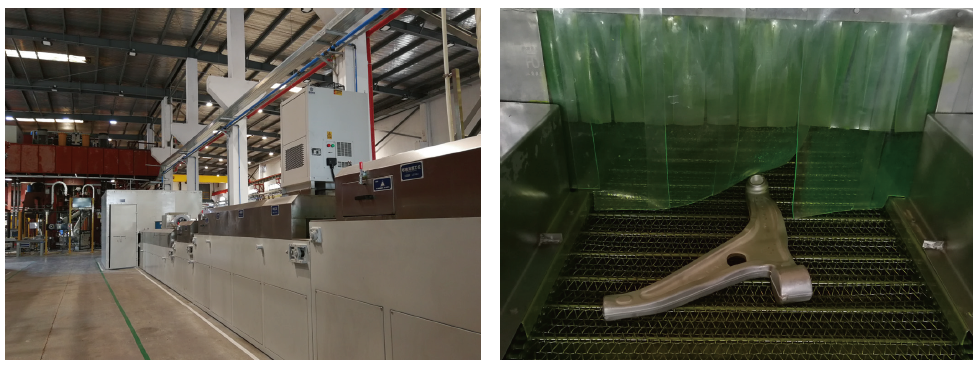

Parts are placed on conveyors and automatically pass through all stations.

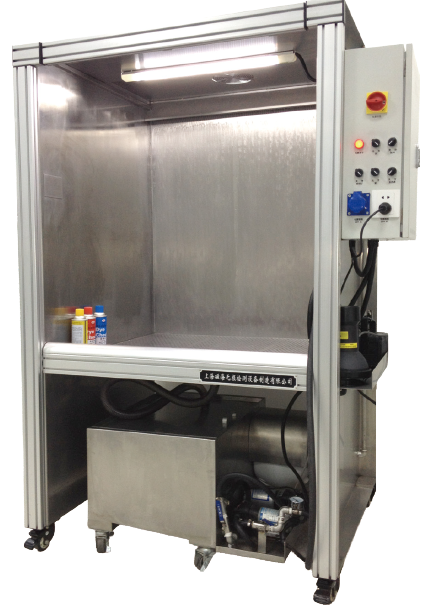

Single penetrant station for spray, removal, manual drying, and developing.
