Functional features

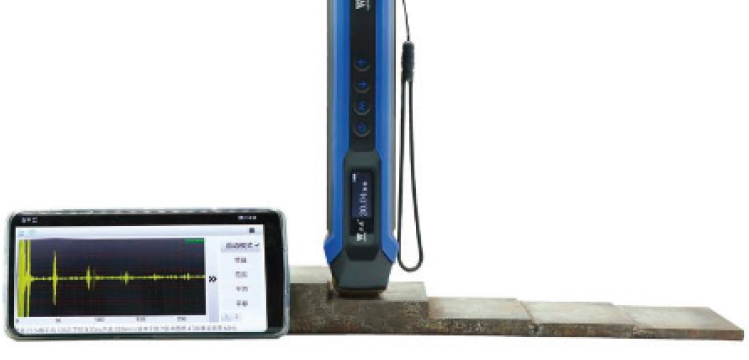

• Compact and lightweight; can be held in one hand
• One-click operation with high measurement accuracy
• Smart Wi-Fi upgrade capability
• Exclusive mobile app with phone synchronization

Technical parameters

• Range & Accuracy: Measuring range 1.5mm–260mm; Measuring accuracy ±0.01mm.
• Constraints: Measuring pipe diameter ≥6mm; Lift-off height Maximum 4mm.
• Probe detection temperature: Conventional probe: -25°C~300°C; High temperature probe: -25°C~600°C.
• Material sound velocity: 1000–9999m/s.

• Signal Core: Sampling frequency 200MHz/10bits; Bandwidth 3MHz–5MHz.
• Excitation & Gain: Excitation Voltage 1000Vpp; Maximum gain 100dB; Excitation mode Permanent magnet.
• Detection waveform: Full detection, positive detection, negative detection, RF.

• Display: 1.09 inch OLED display 128×64.
• Connectivity: Interface Type-C charging port; Function WiFi (software upgrade, data transmission).
• Power: Battery Work continuously for 4 hours.
• Physical: Instrument size 203mm×41mm×35mm; Instrument weight 285g.

Application

Functional features

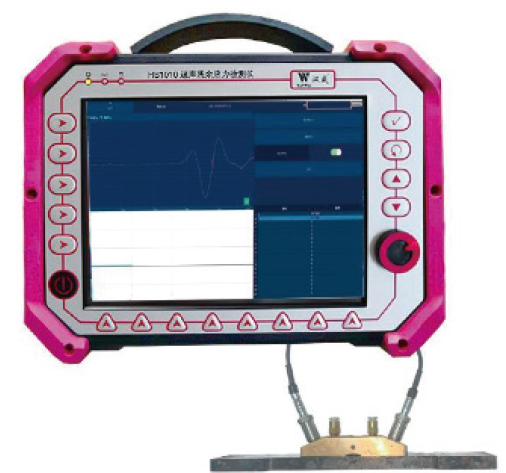

• Ultra-high hardware sampling frequency enables smaller timing error and high measurement accuracy.
• Compact and portable design with long battery life, suitable for on-site inspection.
• Fast detection speed; the probe can be placed directly on the test area for immediate readings.
• The software automatically recognizes and adjusts the waveform window, eliminating manual adjustment.

Technical parameters

• Bandwidth & Gain: Receive frequency bandwidth 0.5MHz–20MHz; Gain range/step 110dB/0.1dB; Sampling frequency/bit 5GHz/8bit.
• Pulse & Impedance: Excitation pulse voltage 200V–400V; Pulse form Negative square wave; Transmit pulse width 30ns–500ns adjustable; Impedance matching 50Ω, 500Ω.
• Detection Capabilities: Detection range 24.3mm–1485mm; Stress detection accuracy ≤±10%.
• Waveform & Processing: Detection waveform Full detection, positive detection, negative detection, RF; Digital processing function Smooth and average (1–8 optional).

• Physical & Display: Instrument size 250×180×75(mm); Instrument weight 3.5Kg (with battery); Display size 8.4"; Display resolution 800×600.
• Power & Environment: Battery life Work continuously for more than 5 hours; Operation temperature (-10–40°C reference value).
• Connectivity: Interface USB, LAN, VGA; Encoder 2 channels.
• System Functions: Storage 64GB; Alarm Audible and visual alarm.

Application

Functional features

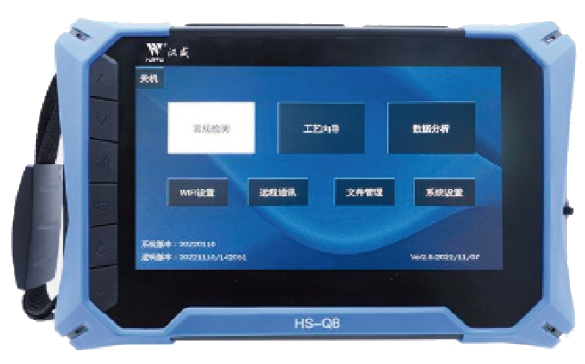

• Newly upgraded intelligent ultrasonic detector.
• Supports 5G and Wi-Fi connectivity for network interconnection, online upgrades, and remote monitoring.
• Built-in process setting wizard with user-friendly assistance for equipment adjustment.
• High-resolution large-screen display for full-screen use, with multi-band signal bandwidth and Internet-enabled operation mode.
• IP68 protection rating.

Technical parameters

• Pulse Specifications: Pulse type Negative square wave pulse; Transmitting pulse voltage 400V (Arbitrarily adjustable); Pulse front <10 ns; Pulse width 30ns–1000ns.
• Impedance Matching: 48Ω, 50Ω.
• Receiver Core: Repetition frequency 15Hz–1000Hz; Dynamic range ≥36dB; Sampling depth 512.
• Accuracy & Noise: Horizontal linearity error <0.1%; Vertical linearity error <3%; Attenuator accuracy ≤±1dB/12dB; Equivalent Input Noise <80nV/Hz.
• Signal Bandwidth: 1. Passband 0.1–30MHz; 2. Broadband 0.1–0.5 MHz, 0.5–2.5 MHz, 1–5 MHz, 2.5–10 MHz, 5–20 MHz, 7.5–30 MHz; 3. Narrowband 5MHz, 10MHz, 15MHz.
• Sound Speed Range: (300–20000)m/s.

• Detection Capability: Resolution >30dB; Surplus sensitivity ≥60dB(Φ2×200mm).
• Operation & Waveform: Detection waveform Full detection, positive detection, negative detection, radio frequency; Operation mode Single crystal flaw detection, double crystal flaw detection.

• Physical & Display: Instrument size 233×147×55(mm); Instrument weight 1.34kg (with battery); Display resolution 1024×600; Display size 7".
• Power System: Power supply / battery DC(10.8V); Battery 7.4V/8000mAh; Battery life Work continuously for more than 5 hours.
• Interface: Metal circular 12 core (VGA,OTG,USB2.0); Metal circular 7 core (2 encoders).
• Environment: Ambient temperature (-10–40°C reference value); Relative humidity (20–95)%RH.

Application

Functional features

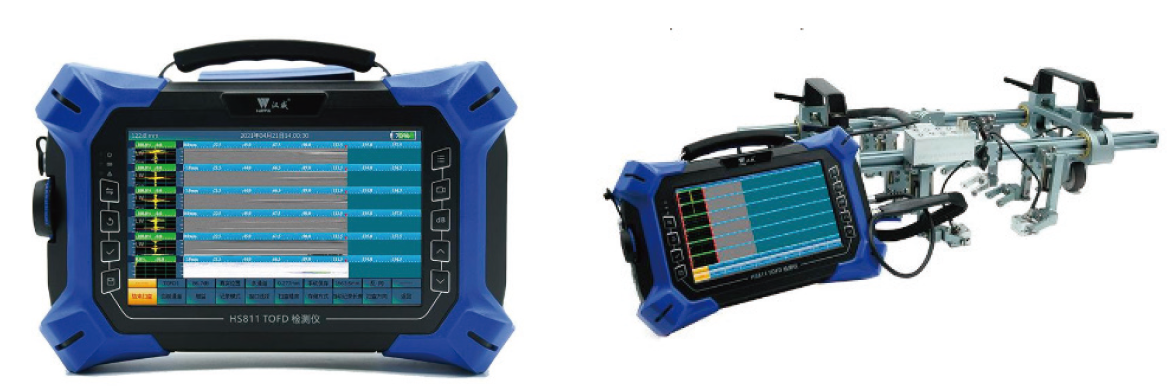

• The transmit/receive channels are expanded from 3 sets of TOFD probes to 8 sets, enabling simultaneous data acquisition.
• Industrial-grade 7-inch color capacitive touchscreen (800×480).
• Added HDMI interface, suitable for external monitoring and training.
• High-speed dual-band Wi-Fi module and 4G module enable real-time monitoring.
• Multi-level adjustable filter bandwidth.

Technical parameters

• Pulse Specifications: Negative square wave pulse; Pulse front <10 ns; Pulse width 15ns–1200ns.
• Receiver Core: Sampling frequency 200MHz/10bits; Sampling depth 512.
• Signal & Range: Equivalent Input Noise <60nV/Hz.

Application

Functional features

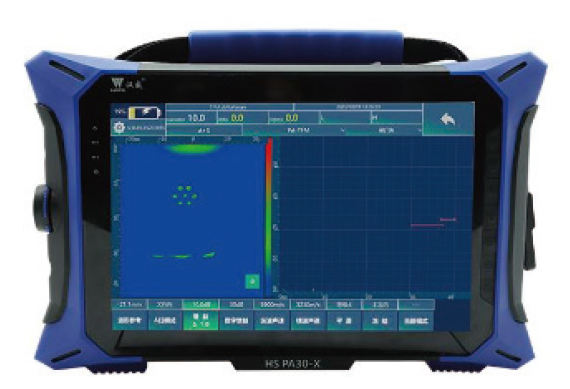

• Multifunctional integration, compatible with PA (TFM/PCI/PWI), TOFD, and A-scan detection functions.
• Visualized inspection interface for faster detection and interpretation.
• Simple operation; phased array elements support automatic calibration.
• A-, C-, L-, and 3D multi-view display of results for easier defect identification.

Technical parameters

• T/R: PAUT channel 64/128 (PR); A-scan channel 8-channel TOFD (4 pairs of pitch-catch).

• Excitation pulse voltage: PAUT channel 50V–100V; A-scan channel 200V–350V.
• Pulse mode: Negative square wave (PAUT & A-scan channels).
• Pulse width: 30ns–500ns/2.5ns (PAUT & A-scan channels).
• Pulse repetition frequency: PAUT channel 200Hz–20kHz adjustable; A-scan channel 100Hz–1kHz adjustable.
• Delay: PAUT channel 0–20μs/2.5ns; A-scan channel 0–655μs/10ns.

• Receive delay: PAUT channel 0–50μs/10ns; A-scan channel /.
• Gain range: PAUT channel 80dB/0.1dB (analog) +30dB/8dB (digital); A-scan channel 110dB/0.1dB.
• System bandwidth: PAUT channel 0.5MHz–20MHz; A-scan channel 0.5MHz–15MHz.

Application
