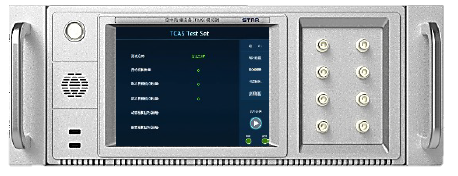

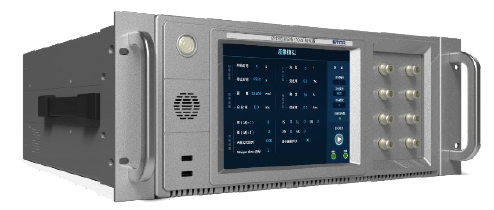

TTS-1000

TTS-1000 is a specialized test instrument for TCAS equipment functionality and performance testing, featuring multiple testing modes.

Supports TCAS interrogation and aircraft scenario simulation.

Supports ATCRBS / Mode S signal generation.

Supports ADS-B In/Out testing.

TTS-1000 adopts a modular design with a user-friendly graphical interface. It can be operated via the front panel, external keyboard/mouse, or LAN remote control.

Compatible with systems such as RGS2000NG.

Multi-port simulation
- Top antenna interface (4 or 1)
- Bottom antenna interface (4)
- Multiple antenna impedances
- Phase-based and amplitude-based azimuth
Transponder pulse adjustment
- Transponder signal simulation output
- ATCRBS response pulse adjustment
- Mode S response modulation
Pulse measurement
- Peak Power
- Pulse Repeat Frequency
Response analysis
- ATCRBS mode response
- Mode S response
Multi-target intrusion simulation
- Dynamic/static distance simulation
- Dynamic/static altitude simulation
- Dynamic/static azimuth simulation
- Dynamic target variation simulation
